SW14 EI30/EI60 Fireguard Window

Product code: SW14-FIREGUARD

Standard Configuration

SafetySafety
Fire rated EI30 or EI60Fire rated EI30 or EI60
NormalNormal

Additional Options

Sound insulationSound insulation
SecuritySecurity
sun protectionsun protection

Note: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.

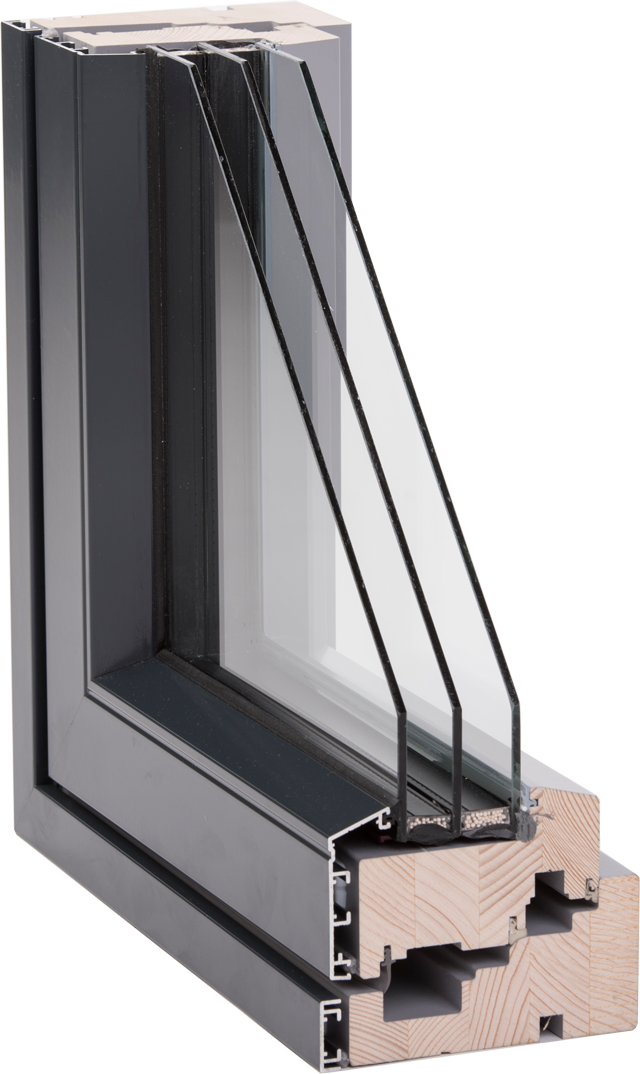

Aluminium Cladding Optional external alu cladding
Glazing 3-glazing with EI30 glass or 2-glazing with EI60 glass - specify with sales representative
Frame Depth 120 mm (132,5 mm with alucladding)
Sound Insulation Rw = 38 dB (-2;-5) - EI30 standard glazing; Rw = 40 dB (-2;-6) - EI60 standard glazing
Material of Sash and Frame Glue-lam pine; quality class A1-A3
Number of sash gaskets 3 sash gaskets (plus additional fire gaskets)
Color of sash gaskets Grey
Thermal transmittance Uw = 1.2 W/m²K (1,23 x 1,48 m opening stadard window)
Hardware PN UNI hinges; ROTO hardware; Hoppe handle

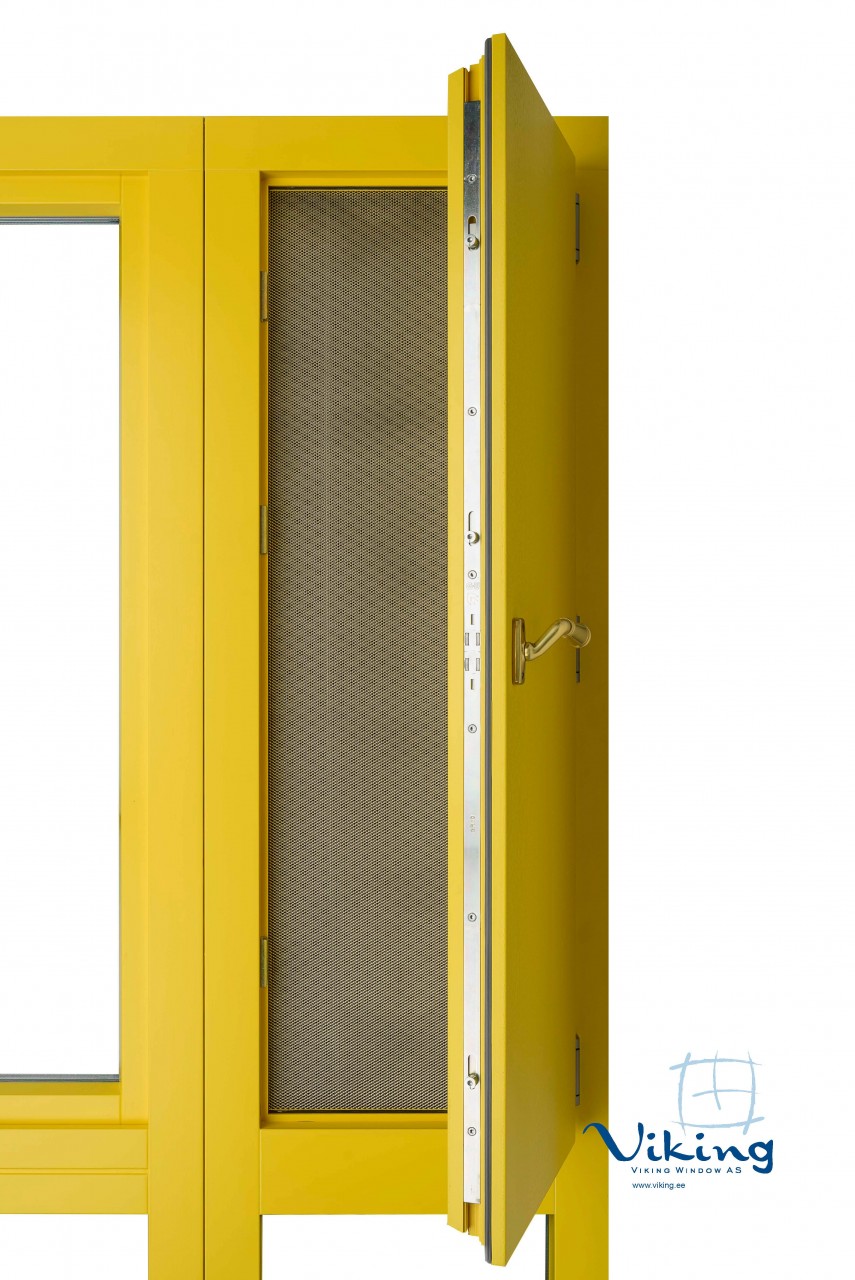

Ventilation hatch Inward opening ventilation hatch
Air tightness Class 4 (600 Pa)
Water tightness Class E1500 (1500 Pa)
Resistance to wind load Class 5C (2000 Pa)
Dimensions

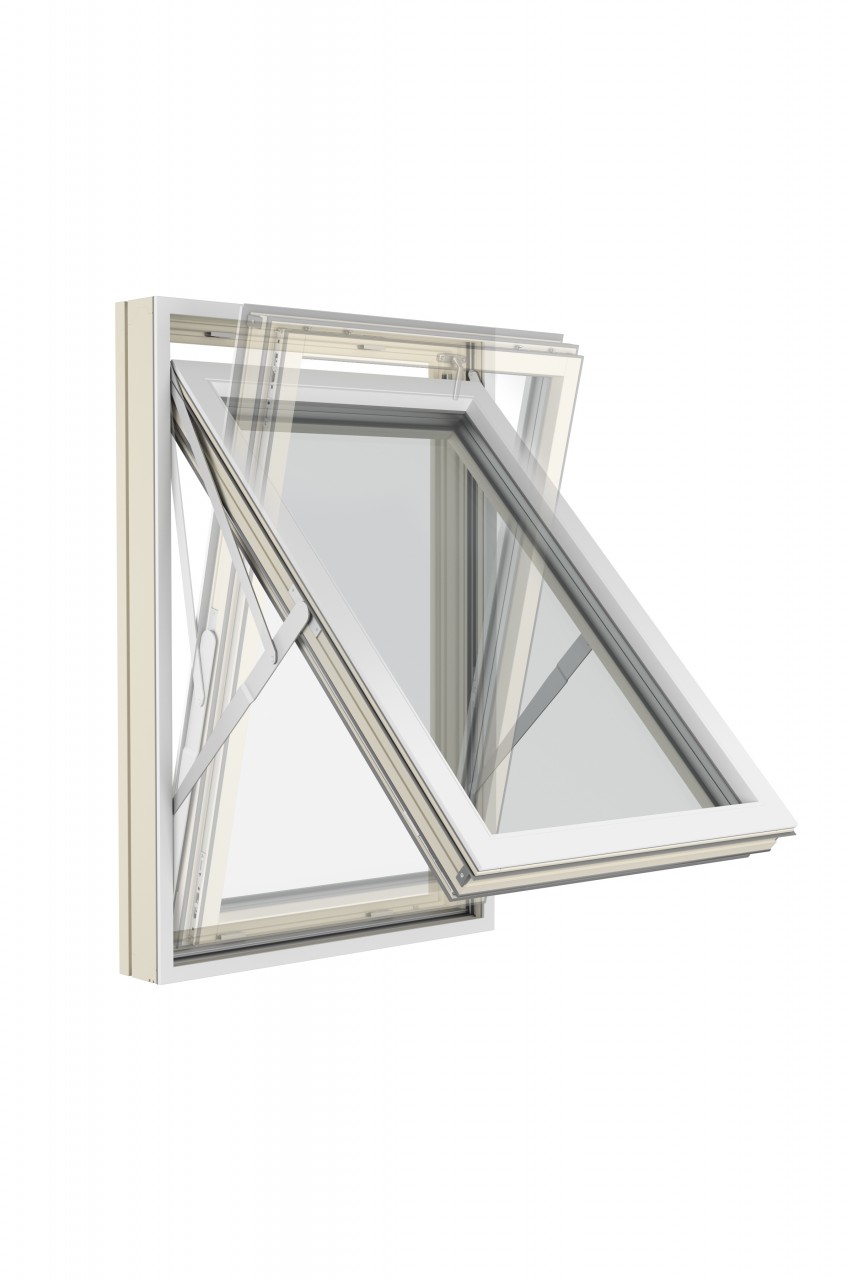

Top Swing:

Sash: W 429-831 mm x H 527-1081 mm

Ventilation hatch:

Sash: W 254 mm x H 1386 mm

Fixed light:

Frame: W 1336 mm x K 2500 mm

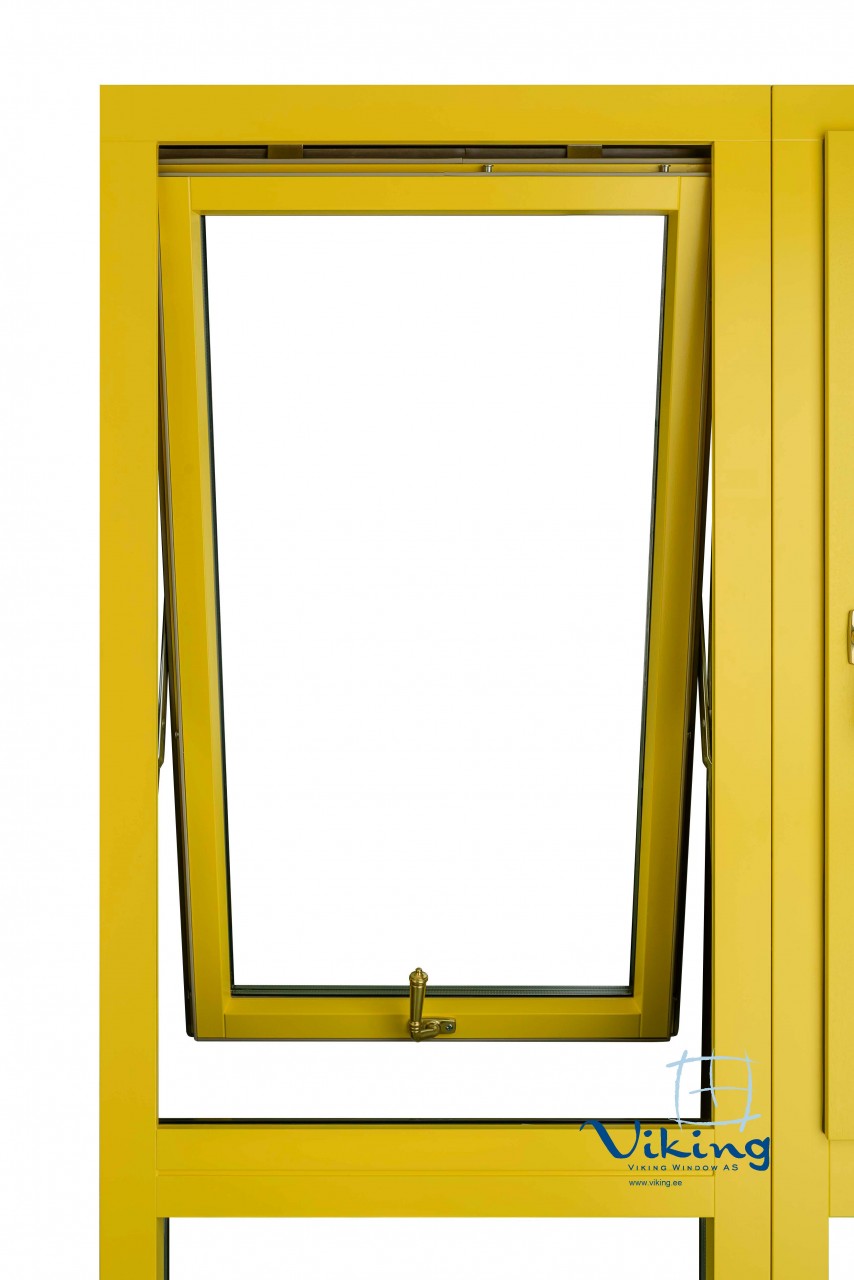

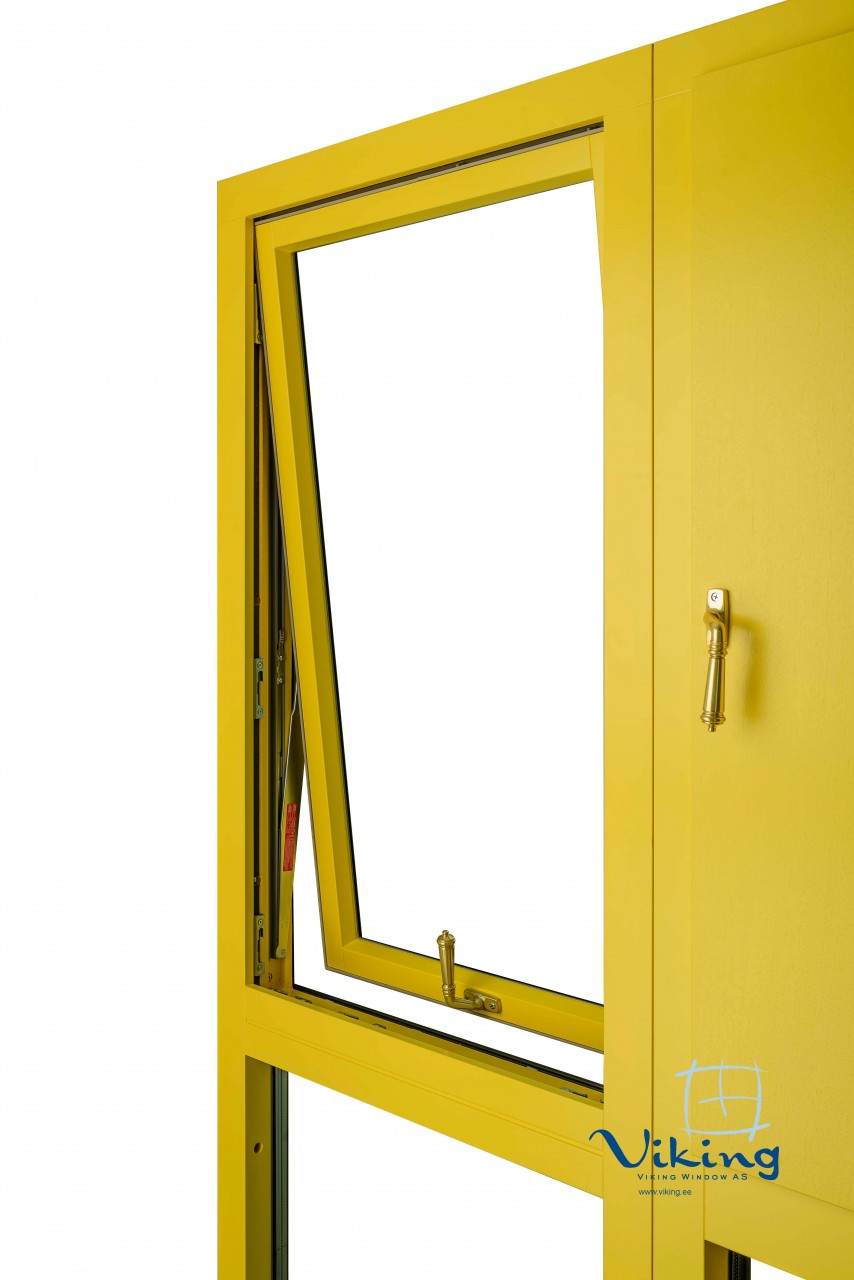

Top swing

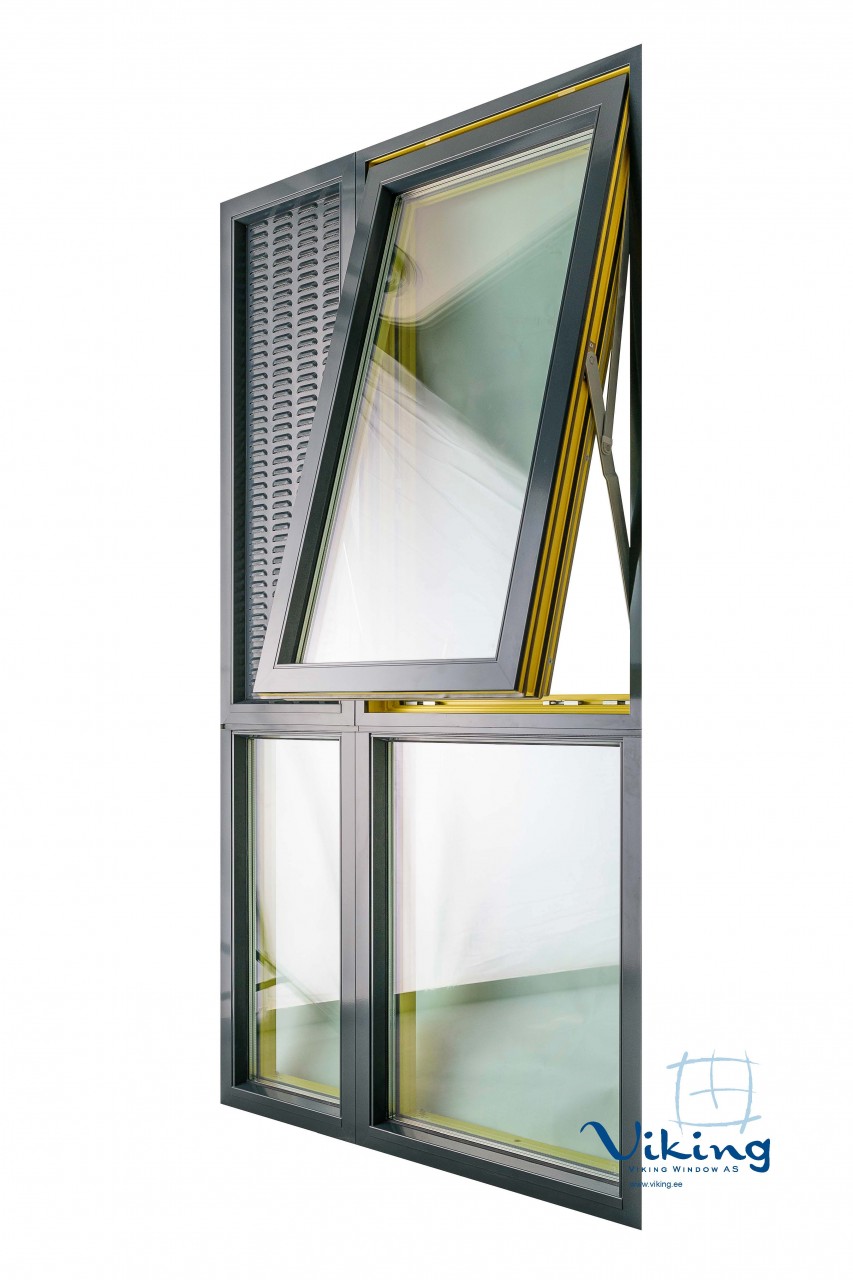

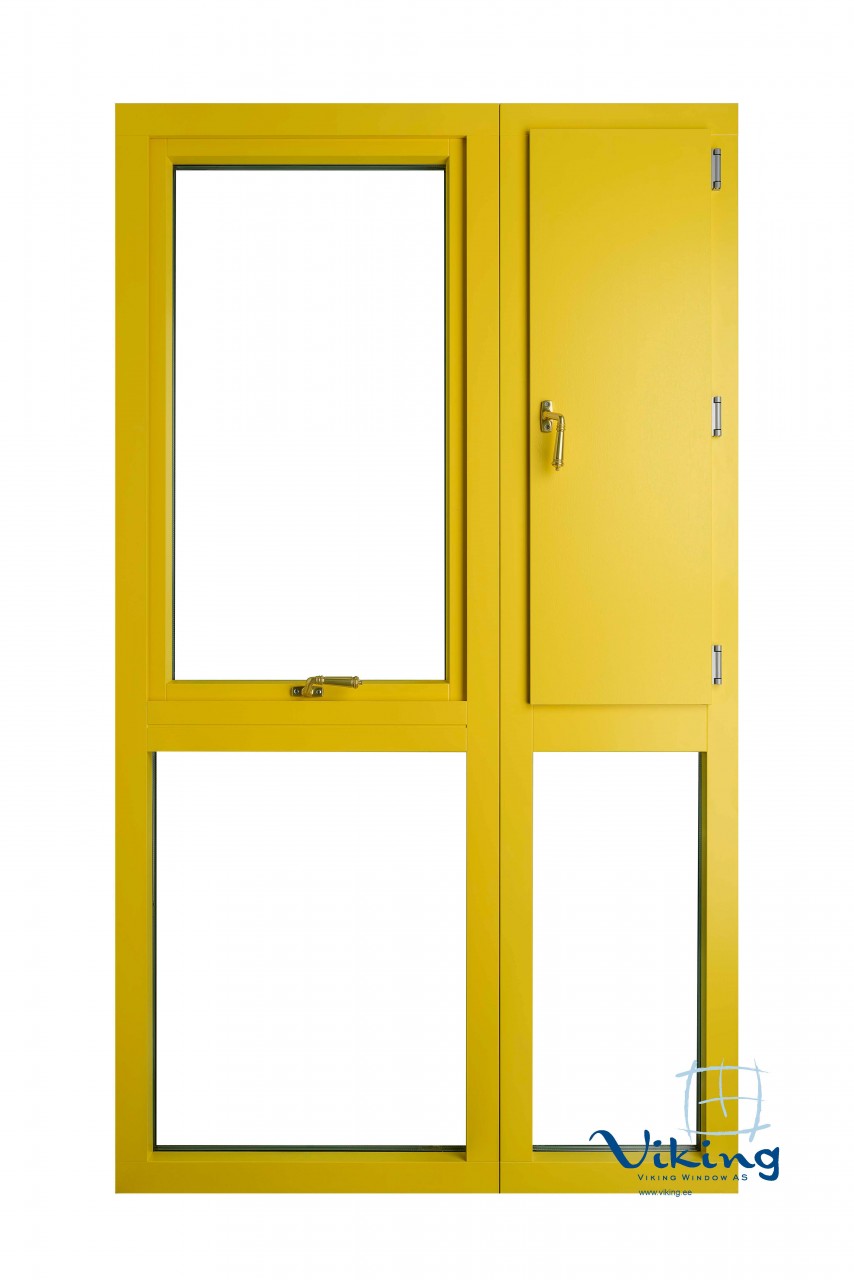

Multi light (with transoms and mullions
Multi light (with transoms and mullions
Fixed light
Fixed light

Material of frame and sash

Glue-lam pine, Nordic timber quality class A1-A3

Finishing

Teknos Aquatop

RAL; NCS and translusent systems:

Värvivalik

Drawings

SW14 openable fireguard window PDF ja DWG

NB! SW14 Fireguard Window profiles are the same with SW14 window profiles. All specific information regards fireguard glass, gasket etc. is not publicly available.



Certificate:

SW14 openable fireguard window

SW14 fixed light fireguard window

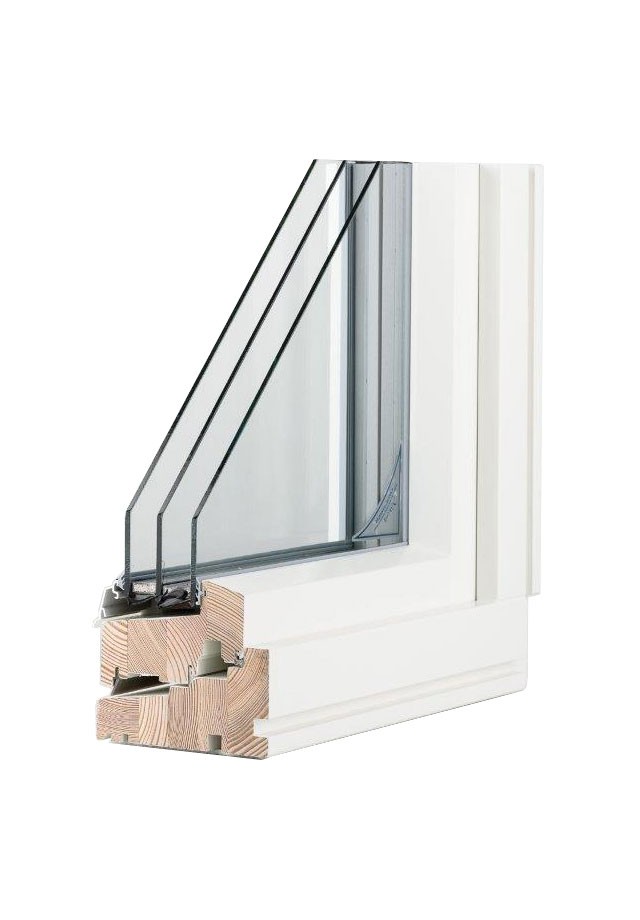

SW14 wooden window represents a unique Nordic design of high energy efficient windows. Window profiles are protected by International Registration of Industrial Designs no DM/083922. Due to unique construction SW14 is a prefect choice to develop fire rated windows and glazed wall elements.


SW14 EI30/EI60 Fireguard Window*

  • Pyrobel EI30 or EI60 glass
  • Both opening and fixed light options **; the opening sash is secured by espagnolette around the perimeter

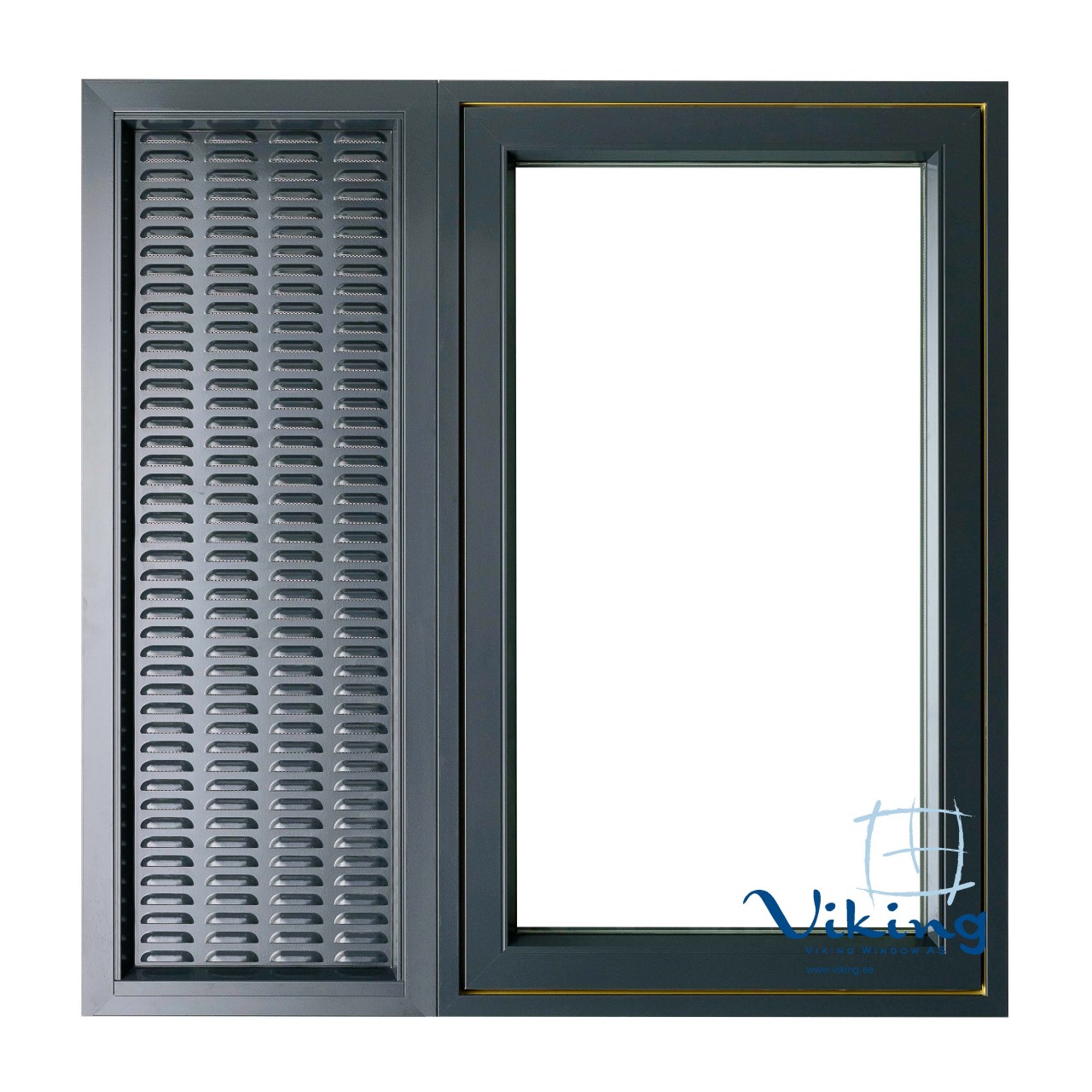

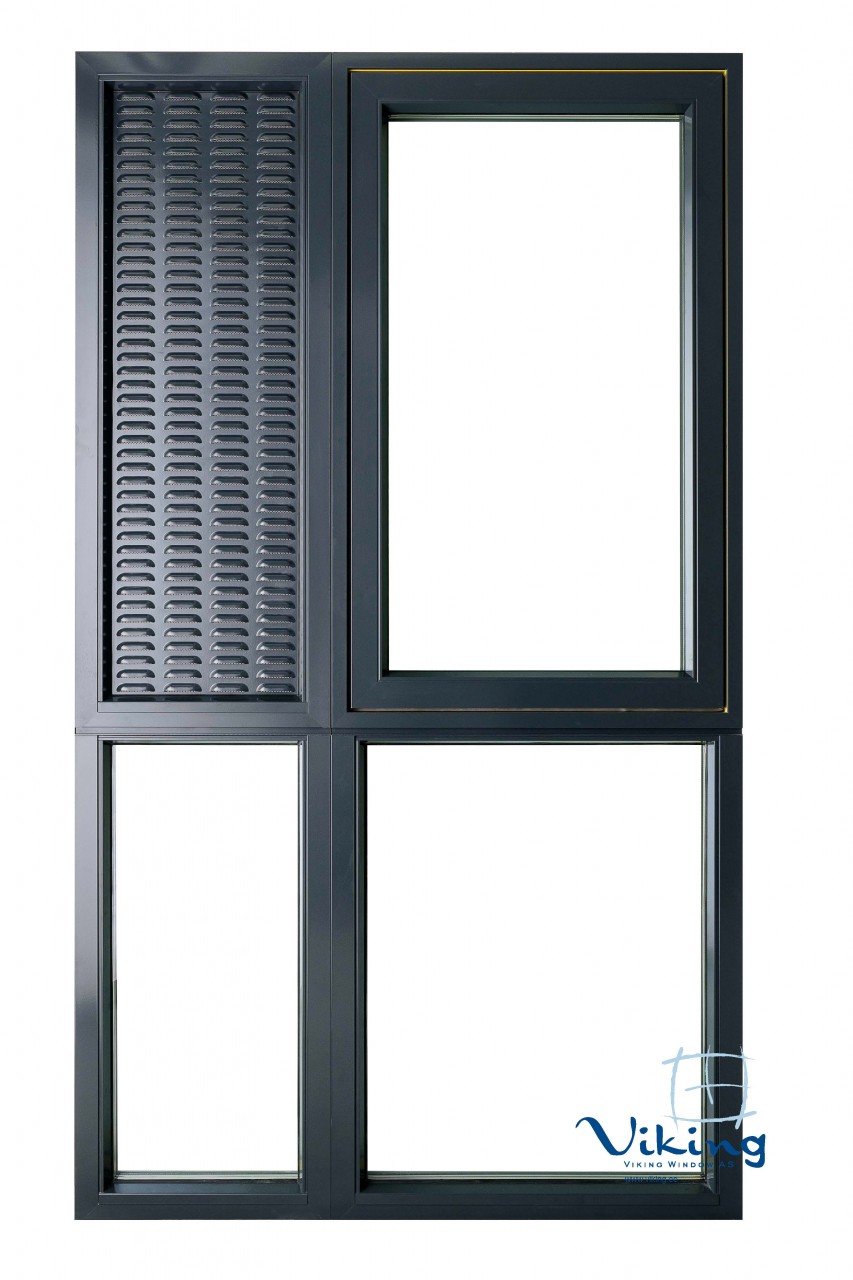

  • Openable ventilations hatch option (opening inwards), equipped with external louvre.
  • Available both as wooden and aluclad window
  • Specific design suitable for Nordic countries. Its three gaskets ensure that profile system is highly insulated and condensation risks between frame and casement are minimized;
  • EI30: 3-glazing, with 2 LowE glasses and internal fire rated glass
  • EI60: 2-glazing with 1 LowE glass and  internal fire rated glass
  • Available with sun protection glass (e.g. SKN174)



Before placing the order and before installation consult with sales representative!

 ----------------------

* Fire ratings EI30 or EI60 in selection.

** Top swing
