SW14 wooden window (3-glazing)
Standard Configuration
Safety
Passive houseAdditional Options
Sound insluation glasses
Sun protection
Fire rated EI30 or EI60
PAS24 solution
NEAR ZERO ENERGY HOMENote: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.
| Aluminium Cladding | Optional external alu cladding |
| Glazing | 50 mm 3-glazing, two LowE glasses, argon filled |
| Frame Depth | 120 mm (132,5 mm with alucladding) |
| Sound Insulation | Rw = 35 dB (-2;-6) - with standard glazing |
| Material of Sash and Frame | Glue-lam pine; quality class A1-A3 |
| Number of sash gaskets | 3 sash gaskets |
| Color of sash gaskets | Grey |
| Thermal transmittance | Uw = 0,72 W/m²K (1,23 x 1,48 m opening standard window) |
| Hardware | PN UNI hinges; ROTO hardware; Hoppe handle |
| Security | PAS24 solution option |
| Air tightness | Class 4 (600 Pa) |
| Water tightness | Class E1500 (1500 Pa) |
| Resistance to wind load | Class 5C (2000 Pa) |

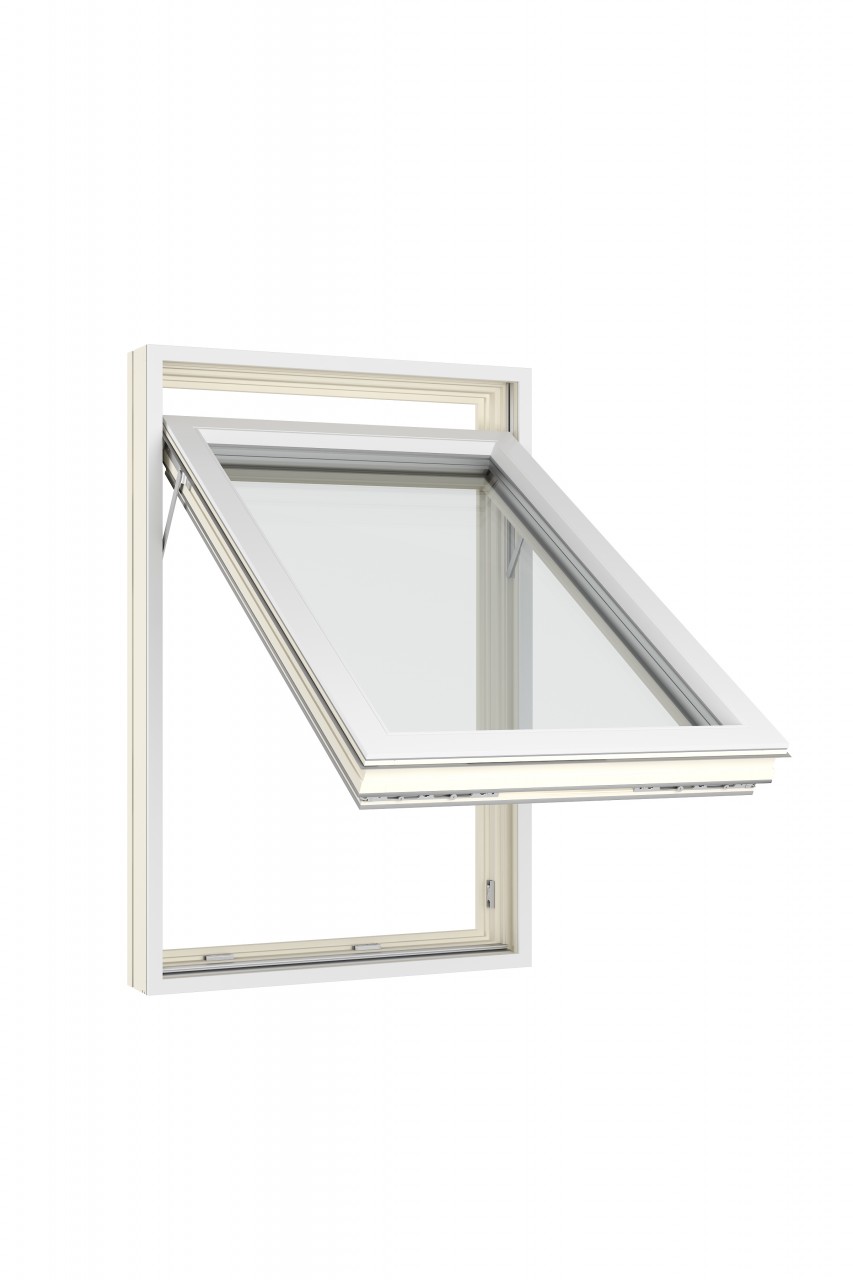

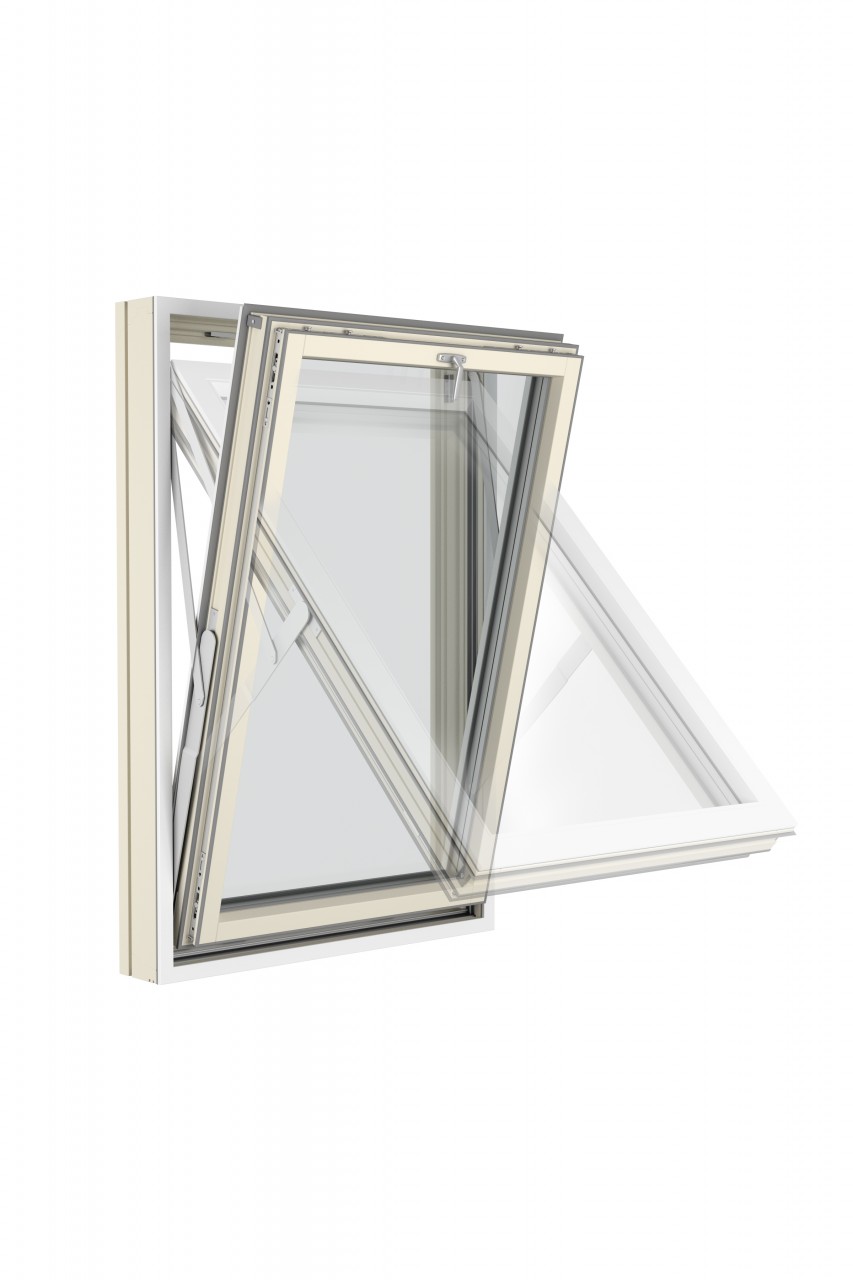

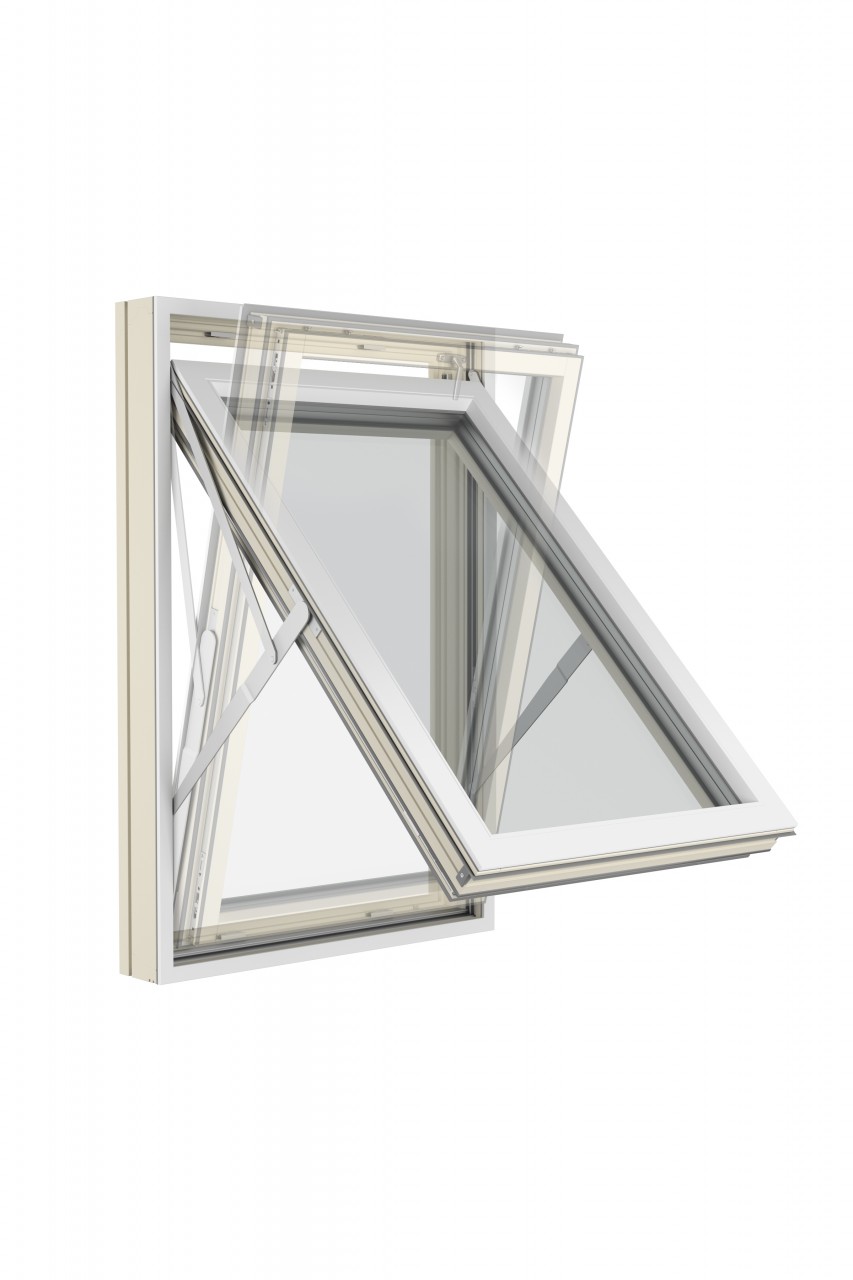

| Dimensions | Side projecting: Top hung: Top swing: |
Material of frame and sash
Glue-lam pine, Nordic timber quality class A1-A3
Finishing
Teknos Aquatop
RAL; NCS and translusent systems:
Glass options
Click on the picture below to browse for more:
Glazing bar options on the glass
(Click on the icon to see larger image)
 |
 |
 |
 |
| Glazing bars (26 mm) 01-00-01 outside Norwegian, inside Norwegian |
Glazing bars (26 mm) 01-SWS-01 outside Norwegian, inside Norwegian + SWS |
Glazing bars (26 mm) 01-00-03 outside Norwegian, inside Swedish |
Glazing bars (26 mm) 01-SWS-03 outside Norwegian, inside Swedish + SWS |
 |
 |
 |
 |
| Glazing bars (26 mm) 01-00-02 outside Norwegian, inside English |
Glazing bars (26 mm) 01-SWS-02 outside Norwegian, inside English + SWS |
Glazing bars (26 mm) 03-00-03 outside Swedish, inside Swedish |
Glazing bars (26 mm) 03-SWS-03 |
 |
 |
 |
 |
| Glazing bars (26 mm) 03-00-02 outside Swedish, inside English |
Glazing bars (26 mm) 03-SWS-02 outside Swedish, inside English + SWS |
Glazing bars (16 mm) 05-00-05 outside and inside 16mm bar |
Removable glazing bar outside (25 mm) 04-00-00 |
Selection of handles
(Click on the icon to see larger image)
 |
 |
 |
| Hoppe 0710LVK-U71Z | Hoppe 0710EVKS-6 | Titon |
Window boards
| Fiber boards: | |||
 |
 |
 |
 |
| A 1.0 | A 1.1 | A 2.0 | A 2.1 |
 |
 |
 |
 |
| A 3.0 | A 3.1 | A 4.0 | A 4.1 |
| Wooden boards: | |||
 |
 |
 |
 |
| A 1.0 | A 1.1 | A 2.0 | A 2.1 |
 |
 |
 |
 |
| A 3.0 | A 3.1 | A 4.0 | A 4.1 |
Fly screens
Standard fly screen material is dark fiberglass mesh:
Illustrations below introduce different types of fly screens applicable for SW14 window and also alternative material solutions for the screens:

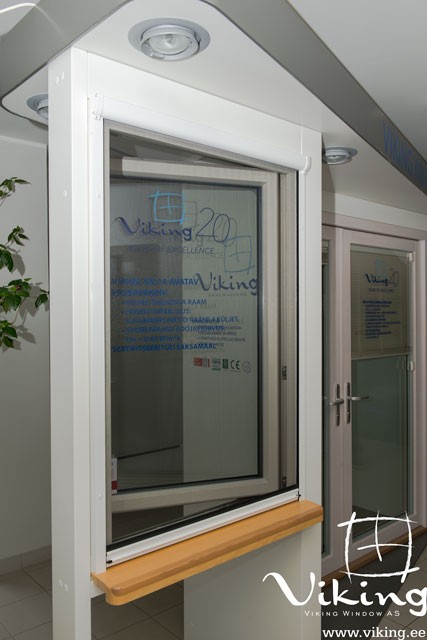

SW14 fly screen types:
 |
 |
| Fiskostar blindfold | GreenteQ blindfold |
NB! For outward opening windows fly screens are fixed on the internal side - thus there must remain sufficient space for the screen frames or blindfold guide rails. Please discuss with the sales representative any further, more detailed quiestions!
Click on the picture below to browse alternative fly screen materials:
SW14 wooden window represents a unique Nordic design of high energy efficient windows. Window profiles are protected by International Registration of Industrial Designs no DM/083922.
SW14 Wooden Window:
- Specific design suitable for Nordic countries. Its three gaskets ensure that profile system is highly insulated and condensation risks between frame and casement are minimized.
- 50 mm triple glazing with 2 low-E coatings (LowE or LowE1.0) and warm edge spacer (e.g. SGG Swisspacer Ultimate) gives excellent insulation and comfort.
- Sun protection coatings can be used if needed (e.g. SKN176).

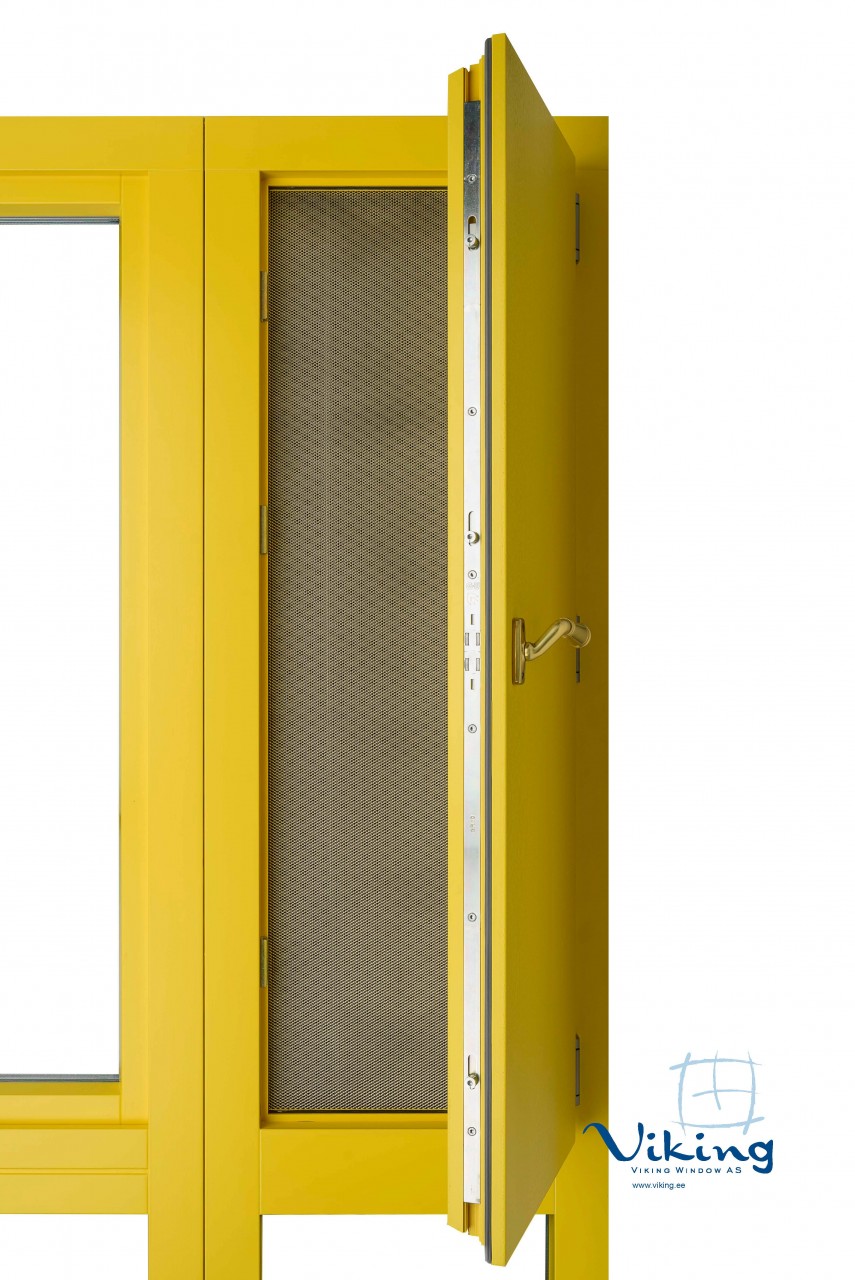

- Espagnolette with locking points around the casement secures the window while closed.
